HELLA 011225831 Black 12V BX Trumpet Horn Kit(Universal Fit)

Upgrade your vehicle’s horn system with this premium horn kit from HELLA. Designed for universal fitment and built to deliver a loud, attention-grabbing sound, this trumpet horn kit combines style, safety, and performance for everyday driving as well as busy traffic conditions.

🔊 Key Features

• Dual-Tone Trumpet Horns (High + Low Tone): The kit includes one horn tuned to approximately 400 Hz (low tone) and the other around 500 Hz (high tone) for a fuller sound spectrum and better audibility.

• Loud Sound Output: Rated sound levels reach in the range of ~110 dB(A) at 2 m distance, making it significantly louder than most stock horns.

• 12 V Voltage Rating: Suitable for standard passenger cars in India with 12 V electrical systems.

• Universal Fitment: Designed to fit a wide variety of vehicles with M8 mounting bracket and 6.3 mm blade-type connections—easy to retrofit.

• Durable Construction: Built with high-quality materials to withstand temperature and environmental challenges; a trusted build from HELLA’s horn catalogue.

✅ Why Choose This Horn Kit?

• Enhances your vehicle’s audio alert system with stronger sound presence.

• Improved safety—being heard clearly can reduce risk in traffic situations.

• Universal design means you can install it on most cars without extensive modifications.

• HELLA’s reputation in automotive acoustic signalling ensures reliability and performance.

📦 What’s in the Box

• 1 × Trumpet Horn (high tone)

• 1 × Trumpet Horn (low tone)

• Mounting bracket & screws (M8 size)

• Wiring connections / flat 6.3 mm blade type terminals

• User installation instructions

🛠 Installation & Fitment Tips

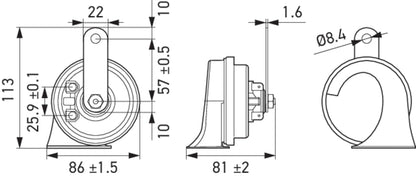

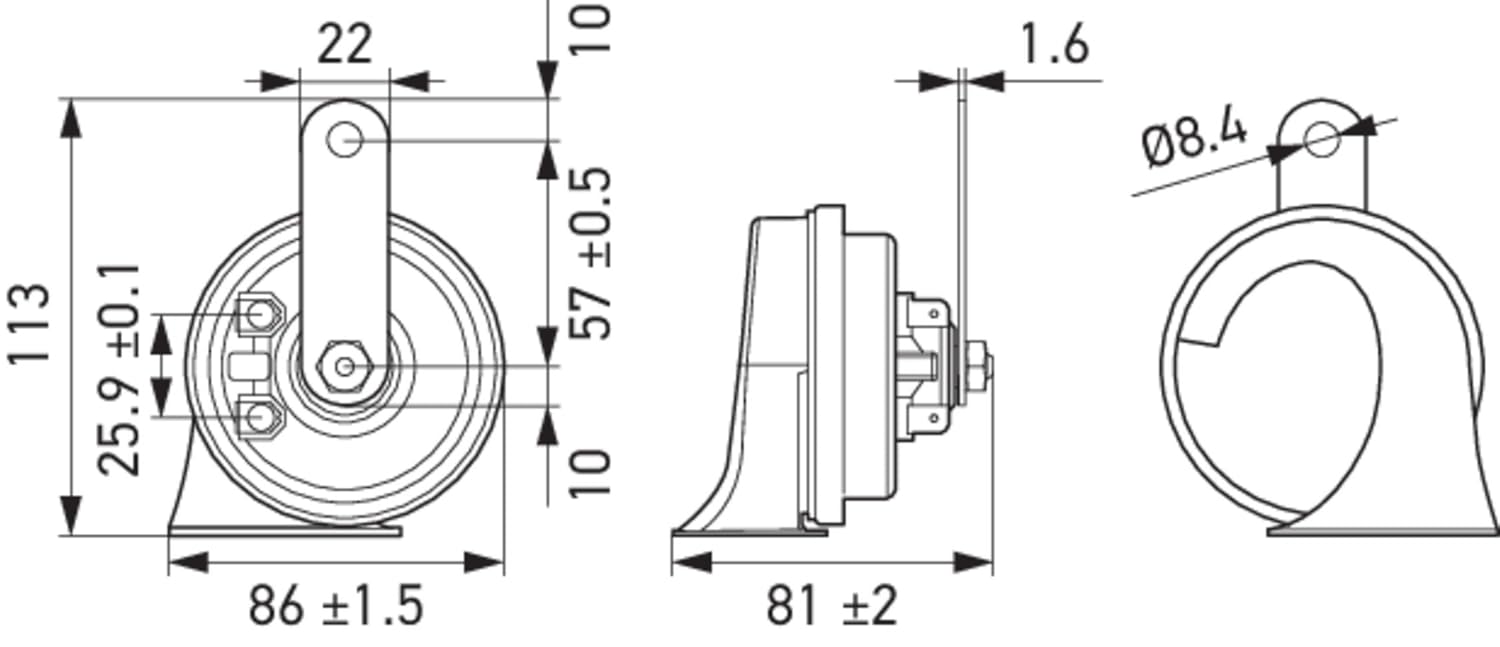

• Verify that your vehicle’s horn mounting location can accommodate the bracket size (M8) and the horn unit size (~15.2 × 10.2 × 12.7 cm) as specified.

• Disconnect battery before installation to avoid short-circuits or system resets.

• Use good quality wiring and ensure solid ground connection for optimal sound.

• Aim the horn aperture away from direct water spray or extreme heat zones (engine bay turbos, exhausts) for longevity.

• Test the horn after installation in a safe environment to verify sound clarity and mounting stability.
