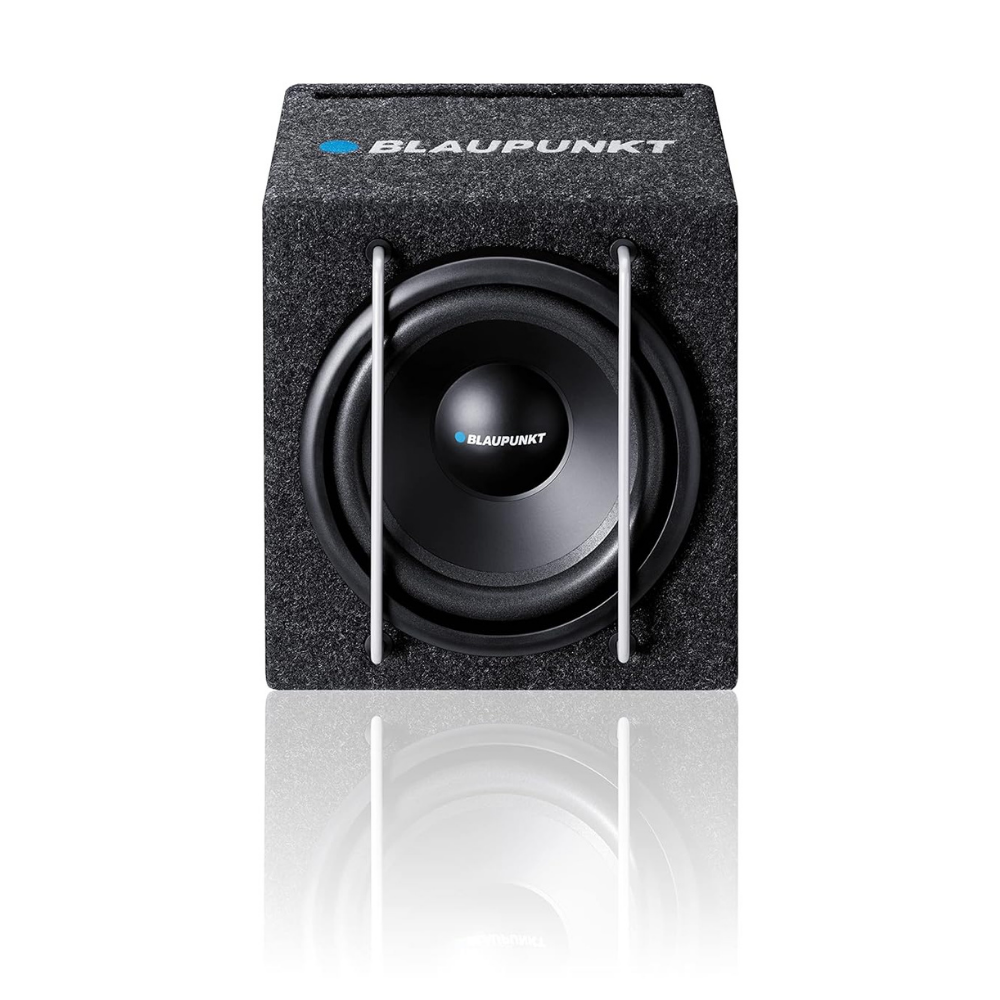

Blaupunkt GTb 8200 A v2 8-Inch Active Subwoofer | 75W RMS | 200W Peak | Class-D Amplifier | Bass Reflex MDF Enclosure

Experience powerful low-frequency performance in a compact package with the Blaupunkt GTb 8200 A v2 8-inch active subwoofer featuring an integrated Class-D amplifier and custom-designed MDF bass reflex enclosure.

Compact 8-Inch Active Subwoofer

The Blaupunkt GTb 8200 A v2 combines an 8-inch spun paper cone with an integrated amplifier and bass reflex enclosure to deliver enhanced low-frequency performance while maintaining a compact footprint for vehicle installation.

8-Inch Spun Paper Cone

The subwoofer features a 200 mm 8-inch spun paper cone designed for bass reproduction. The system has a rated power of 75 watts RMS and peak power of 200 watts.

Integrated Class-D Amplifier

A high-efficiency Class-D digital amplifier is integrated into the subwoofer enclosure. This eliminates the need for a separate external amplifier and provides an integrated solution for adding bass to a car audio system.

Bass Reflex MDF Enclosure

The GTb 8200 A v2 uses a custom-designed MDF bass reflex enclosure engineered around the 8-inch driver. The enclosure is designed to provide deep and controlled bass performance while keeping the overall system compact.

Flexible OE and Aftermarket System Integration

The subwoofer is designed for integration with both OEM and aftermarket car audio systems. It supports high-level inputs with DC offset automatic turn-on capability as well as standard RCA inputs.

Adjustable Bass Controls

Separate controls allow adjustment of the subwoofer according to the vehicle's audio setup. The system provides controls for gain, phase and low-pass filtering.

The listed low-pass filter range is 70 Hz to 190 Hz, while phase adjustment is available from 0° to 180°.

Wide Frequency Response

The Blaupunkt GTb 8200 A v2 has a listed frequency response of 30 Hz to 200 Hz, providing dedicated low-frequency reproduction for a car audio system.

Compact Enclosure Design

The enclosure measures approximately 255 x 260 x 272 mm, with the source specification also listing an alternate dimension of 202 mm for the enclosure configuration.

Easy Connection and Installation

The system is designed for straightforward connection and integration with existing vehicle audio systems. Automatic turn-on is supported through high-level, low-level and remote signals.

Complete Package

The supplied package includes the GTb 8200 A v2 subwoofer with enclosure, wiring cable, user manual and warranty card.
