Nakamichi NDSE500A 8 Channel DSP Amplifier | 1040W Max Power | 4x100W Rated | USB Lossless | Bluetooth | External LCD Controller Support

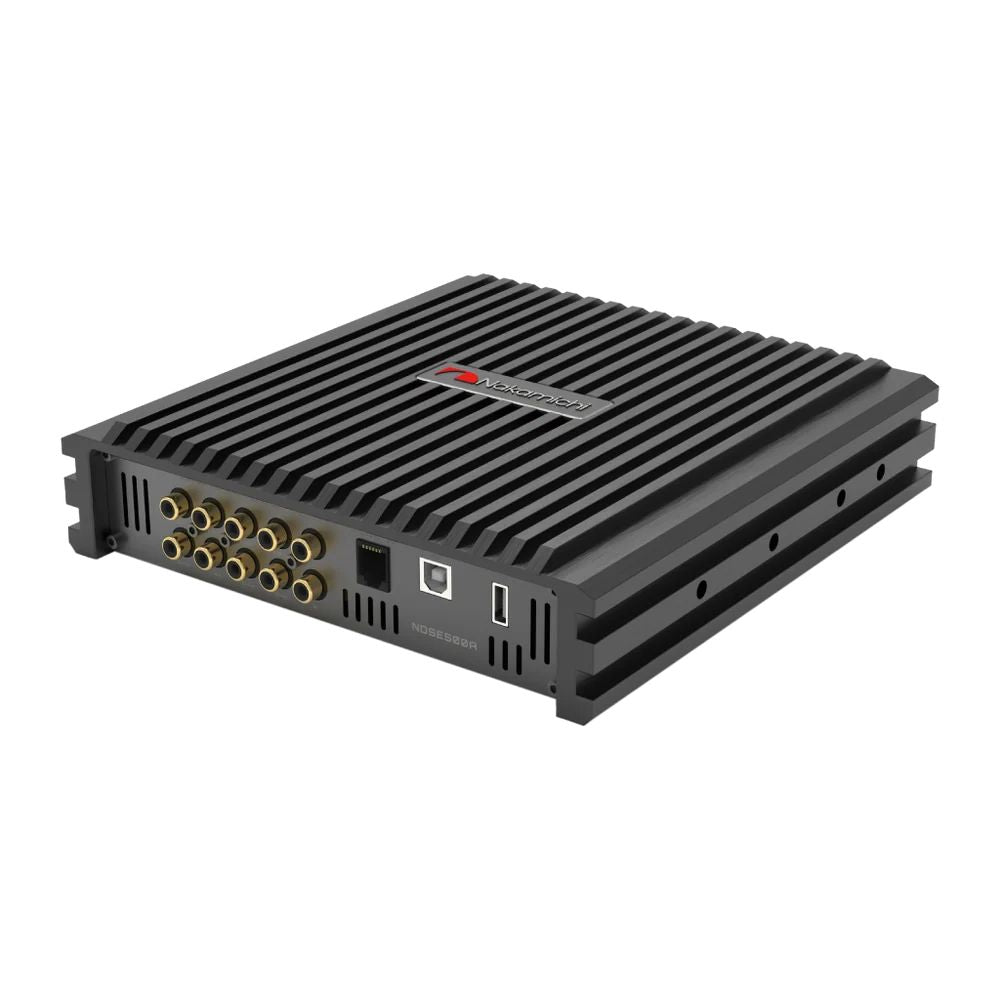

The Nakamichi NDSE500A is an 8-channel digital signal processor with a built-in Class AB high-power amplifier, combining signal processing and amplification in a single unit. It offers a 4-in and 8-out configuration, delivers up to 1040W of maximum system power, and is rated at 4x100W. The unit supports USB lossless music playback, Bluetooth music playback, and connects to an external LCD controller for on-the-fly adjustment. Below is what each feature does and why it matters.

8-Channel DSP with Built-In Amplifier

The NDSE500A combines digital signal processing and amplification in one unit, which means a single device handles both the audio tuning (equalization, time alignment, crossover settings) and the power delivery to the speakers. This reduces the number of separate components needed in a car audio build and simplifies wiring compared to running a standalone DSP and a separate amplifier.

• Processing: 8-channel digital signal processor

• Amplification: Built-in Class AB amplifier

• Configuration: 4-in and 8-out

Power Output

The unit delivers a maximum system power of 1040W and a rated power of 4x100W. The rated power figure reflects continuous output under normal conditions, while the maximum figure reflects peak output capability, giving headroom for dynamic audio passages.

• Maximum system power: 1040W

• Rated power: 4x100W

Input and Output Configuration

The NDSE500A offers a detailed set of inputs and outputs for building out a multi-channel car audio system:

• Low-level inputs: 2 (for RCA-level source connections)

• High-level inputs: 4-channel (for connecting directly to a factory stereo's speaker-level output)

• High-level output: 8-channel

• Low-level output: 8-channel

This input and output flexibility allows the unit to accept audio from either an aftermarket head unit with RCA outputs or a factory stereo with speaker-level outputs, and to drive either speakers directly or feed additional amplifiers downstream.

USB Lossless and Bluetooth Playback

The unit supports USB lossless music playback, allowing high-fidelity audio files to be played without compression-related quality loss when connected via USB. It also supports Bluetooth music playback for wireless audio streaming from a phone or other source device.

• USB playback: Lossless

• Bluetooth playback: Supported

Supported Audio Formats and Sample Rates

The NDSE500A supports a wide range of audio file formats and sample rates, covering most common compressed and lossless file types used in car audio setups.

• Supported formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, M4A, WAV, AIF, AIFC

• Supported sample rates: 8kHz, 11.0225kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz

External LCD Controller Support

The unit supports an external LCD controller, which allows real-time adjustment and monitoring of the system from a dash-mounted or accessible display, rather than requiring a laptop connection every time a setting needs to be checked or changed.

• External LCD controller: Supported
