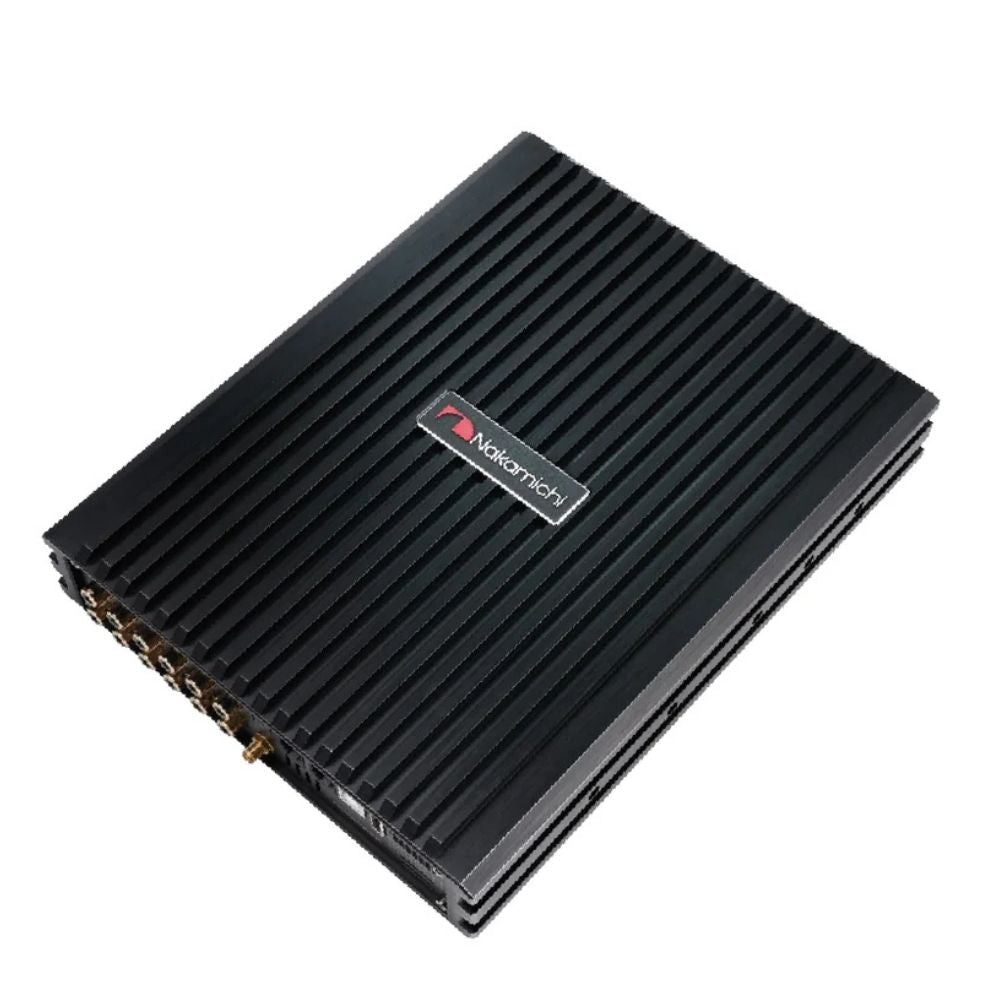

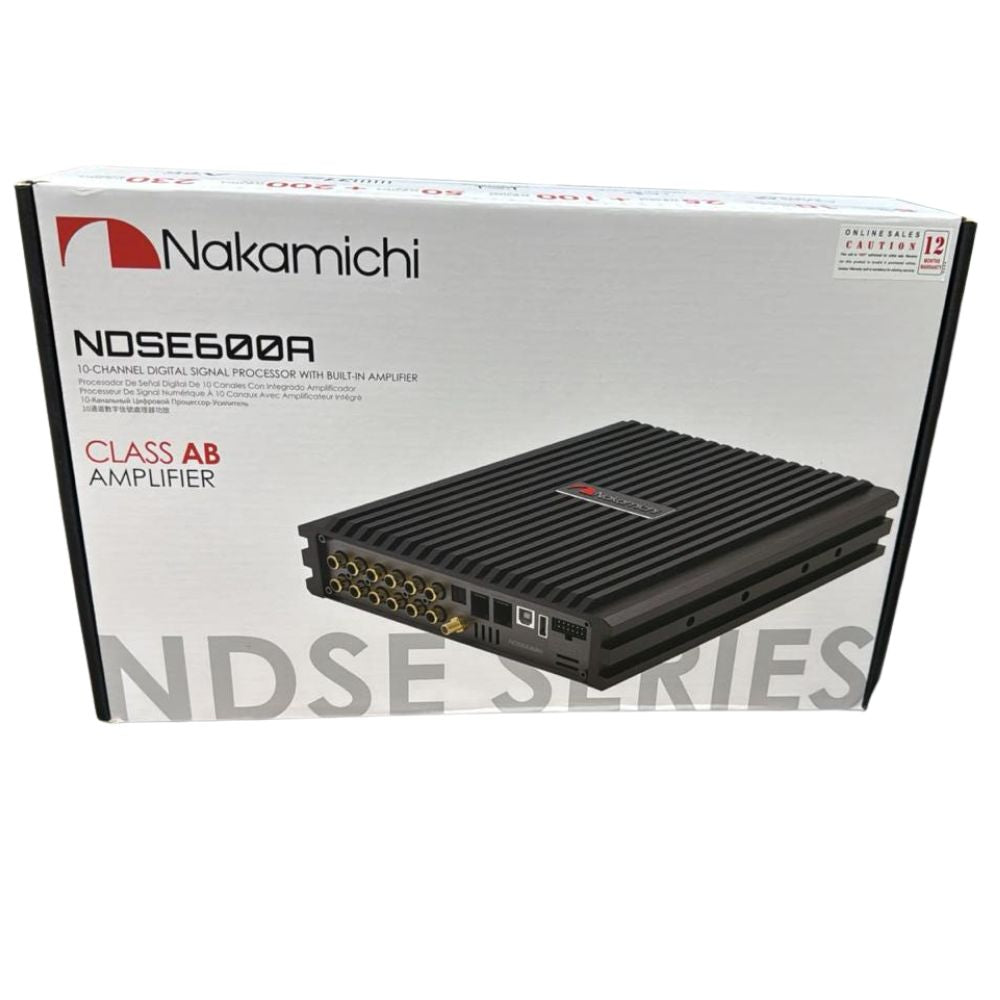

Nakamichi NDSE600A 8 IN 10 OUT Class AB DSP Amplifier | USB Lossless | Bluetooth | 31 Band EQ | External LCD Controller Support

The Nakamichi NDSE600A is an 8-IN 10-OUT Class AB digital signal processor with a built-in amplifier, designed for multi-channel car audio builds that need detailed signal processing alongside power delivery. It accepts 8-channel high-level input, outputs across 10 low-level channels, and delivers a maximum power of 4 x 50W plus 4 x 200W. The unit supports USB lossless playback, Bluetooth audio streaming, a 31-band EQ across 6 groups, and connects to an external LCD controller. Below is what each feature does and why it matters.

8-IN 10-OUT Class AB DSP Architecture

The NDSE600A is built around an 8-in, 10-out Class AB DSP architecture, giving it one of the larger channel counts in its category. This configuration supports more complex multi-way speaker setups, where different channels can be dedicated to tweeters, mid-range drivers, and subwoofers independently, each tuned through the DSP.

• DSP type: 8-IN 10-OUT Class AB

• Input channels: 8

• Output channels: 10

High-Level Input Connectivity

The unit accepts 8-channel high-level input, meaning it can connect directly to a factory stereo's speaker-level output without requiring a separate line output converter. This makes it suited to builds where a factory head unit is being retained and upgraded with aftermarket amplification and processing.

• Input type: 8CH High-Level

• Connection: Direct from factory speaker-level output

Power Output: 4 x 50W Plus 4 x 200W

The maximum power output is split across two channel groups: 4 channels at 50W and 4 channels at 200W. This split configuration is typical of a setup where the lower-power channels drive smaller speakers such as tweeters or mid-range drivers, while the higher-power channels are reserved for components that need more headroom, such as subwoofers or mid-bass drivers.

• Max power, group 1: 4 x 50W

• Max power, group 2: 4 x 200W

USB Lossless Playback and Bluetooth Streaming

The NDSE600A supports USB lossless music playback, allowing high-fidelity audio files to play back without compression losses when connected via USB. It also supports Bluetooth audio streaming for wireless playback from a phone or other source device, with a Bluetooth frequency response range of 20Hz to 20kHz.

• USB playback: Lossless

• Bluetooth streaming: Supported

• Bluetooth frequency range: 20Hz ~ 20kHz

31-Band EQ Across 6 Groups

The unit includes a 31-band EQ organized into 6 groups, giving fine control over tonal balance across the frequency spectrum. This level of EQ granularity allows for more precise correction of in-cabin acoustic issues compared to a basic multi-band equalizer.

• EQ bands: 31

• EQ groups: 6

External LCD Controller Support

The NDSE600A supports an external LCD controller, allowing settings to be viewed and adjusted from a dash-accessible display rather than requiring a laptop connection for every adjustment.

• External LCD controller: Supported

Dimensions and Weight

The unit measures 270 x 213 x 49mm and weighs approximately 2.8kg, which is useful information for planning mounting space during installation.

• Product size: 270 x 213 x 49mm

• Net weight: Approx 2.8kg
