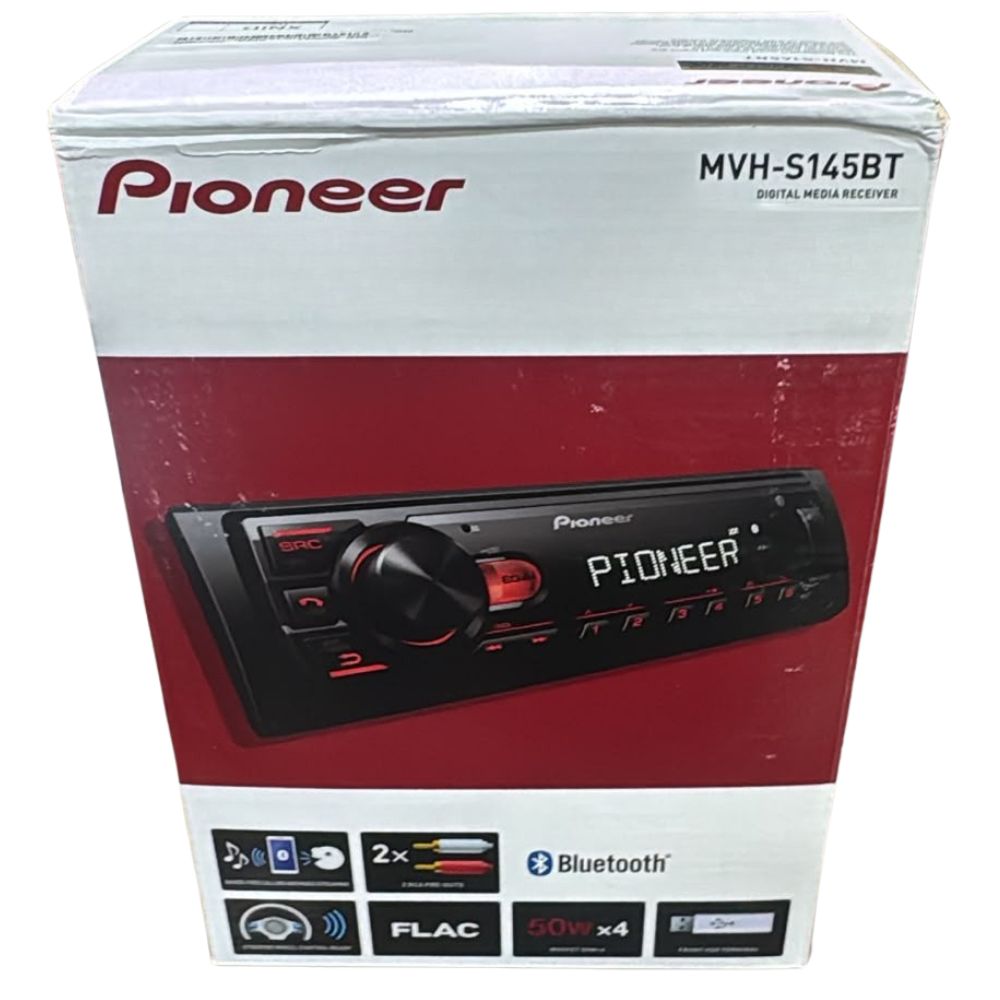

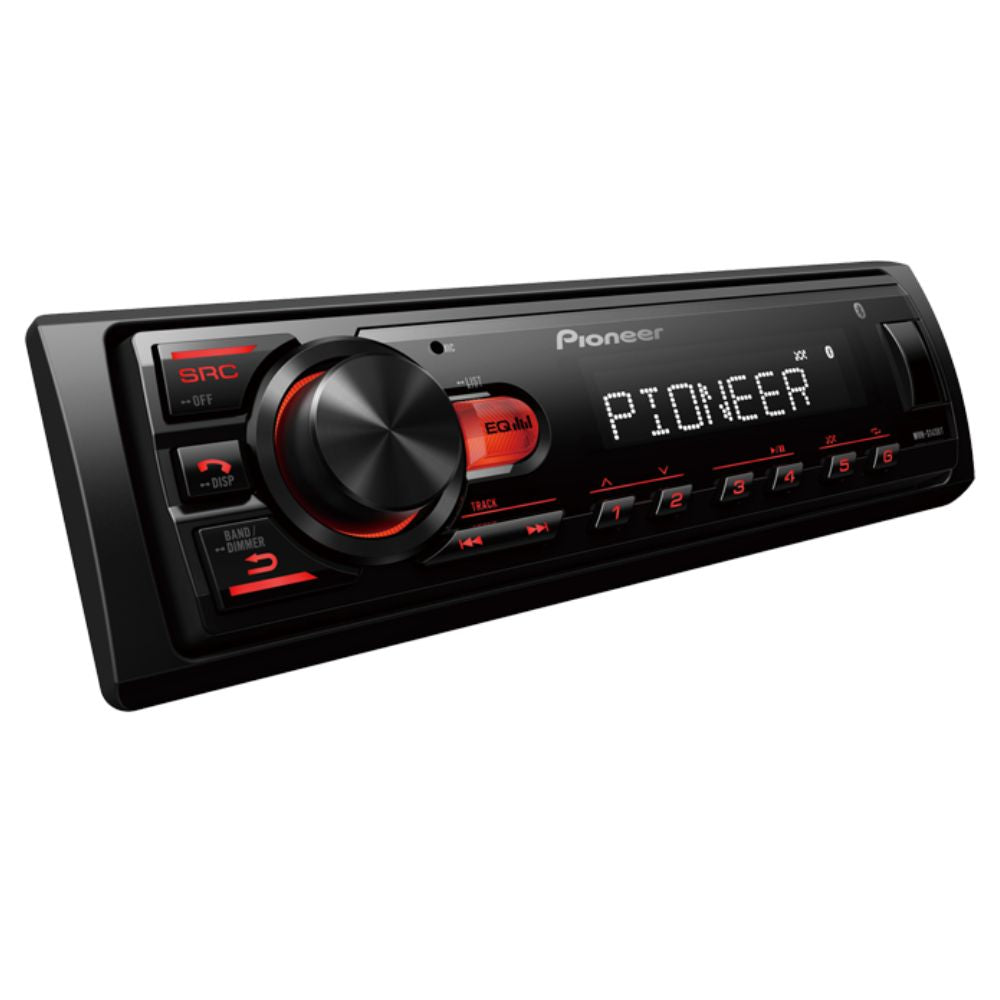

Pioneer MVH-S145BT Car Stereo | Built-In Bluetooth | Front USB | AM/FM | FLAC Support | 50Wx4 Max Power | Steering Remote Compatible

The Pioneer MVH-S145BT is a USB and Bluetooth car stereo receiver that delivers high-quality sound with wireless convenience. It offers 50W x 4 maximum power, built-in Bluetooth for hands-free calling and wireless audio streaming, front USB connectivity, AM/FM radio, and support for FLAC, MP3, WMA, and WAV audio formats. Audio control is handled through a Direct EQ key, 2-band EQ, balance and fader controls, and loudness correction. Below is what each feature does and why it matters.

Direct EQ Key

The MVH-S145BT has a Direct EQ key that lets you change the equalizer setting with a single touch, rather than navigating through a menu. This makes it faster to switch between EQ presets to suit different music genres or listening preferences while driving.

• EQ access: Direct EQ key, single-touch

• EQ bands: 2 Band

Built-In Bluetooth

The unit has built-in Bluetooth wireless technology, enabling hands-free calling and wireless audio streaming from a paired phone. This removes the need for a separate Bluetooth adapter and keeps the hands-free function easy and safe to operate while driving.

• Bluetooth: Built-in

• Hands-free calling: Supported

• Wireless audio streaming: Supported

• Built-in microphone: Yes, wired BT MIC built-in

FLAC Codec Support

The MVH-S145BT supports FLAC files, which reproduce audio detail more faithfully than compressed formats, in some cases surpassing CD-quality playback. The unit also decodes MP3, WMA, and WAV formats, covering most common music file types.

• Supported formats: MP3, WMA, FLAC, WAV

• FLAC playback: Supported, for higher-fidelity audio reproduction

Power Output

The unit delivers a maximum power output of 50W x 4 and an RMS power of 22W x 4. The RMS figure reflects continuous power output under normal conditions, while the maximum figure reflects peak output capability.

• Max power: 50W x 4

• RMS power: 22W x 4

Audio Controls: Balance, Fader, and Loudness

Beyond the EQ, the unit includes balance control (left/right speaker output), fader control (front/rear speaker output), and a loudness function, which boosts bass and treble at lower volumes to compensate for how the human ear perceives sound at reduced levels.

• Balance: Yes

• Fader: Yes

• Loudness: Yes

Pre-Out Connections

The MVH-S145BT includes 2 pre-outs: Front and SW (Mono), allowing the unit to be connected to an external amplifier for the front speakers and a subwoofer, for a system with more power than the unit's built-in amplifier alone.

• Pre-outs: 2, Front and SW (Mono)

Front USB and AM/FM Radio

The unit has a front-mounted USB port for connecting USB storage devices, and AM/FM radio for standard broadcast listening.

• USB: Front-mounted

• Radio: AM/FM

Steering Wheel Remote Compatibility

The MVH-S145BT supports steering wheel remote controls, allowing the vehicle's existing steering-mounted buttons to operate the stereo once configured for the specific vehicle.

• Steering remote support: Yes

Illumination

The unit's display and controls are illuminated in red.

• Illumination colour: Red

TEC Certification

The MVH-S145BT is TEC certified, meeting India's mandatory testing and certification requirements for telecommunication equipment, including EMI, EMC, safety, and Bluetooth testing.

• Certification: TEC Certified
