Pioneer TS-D1740C Car Component Speaker System | 100W RMS | 450W Peak | 6.5 Inch | D-Series

Upgrade your car's audio system with the Pioneer TS-D1740C D-Series 2-Way Component Speaker System, designed to deliver punchy bass, clear vocals and detailed high frequencies. Featuring a distinctive yellow glass-fibre woofer cone, dedicated tweeters and an external crossover network with three-level tweeter adjustment, this speaker system combines high power handling with refined sound reproduction. It is rated at 100W RMS and 450W maximum music power, making it suitable for premium car-audio upgrades.

About the Product

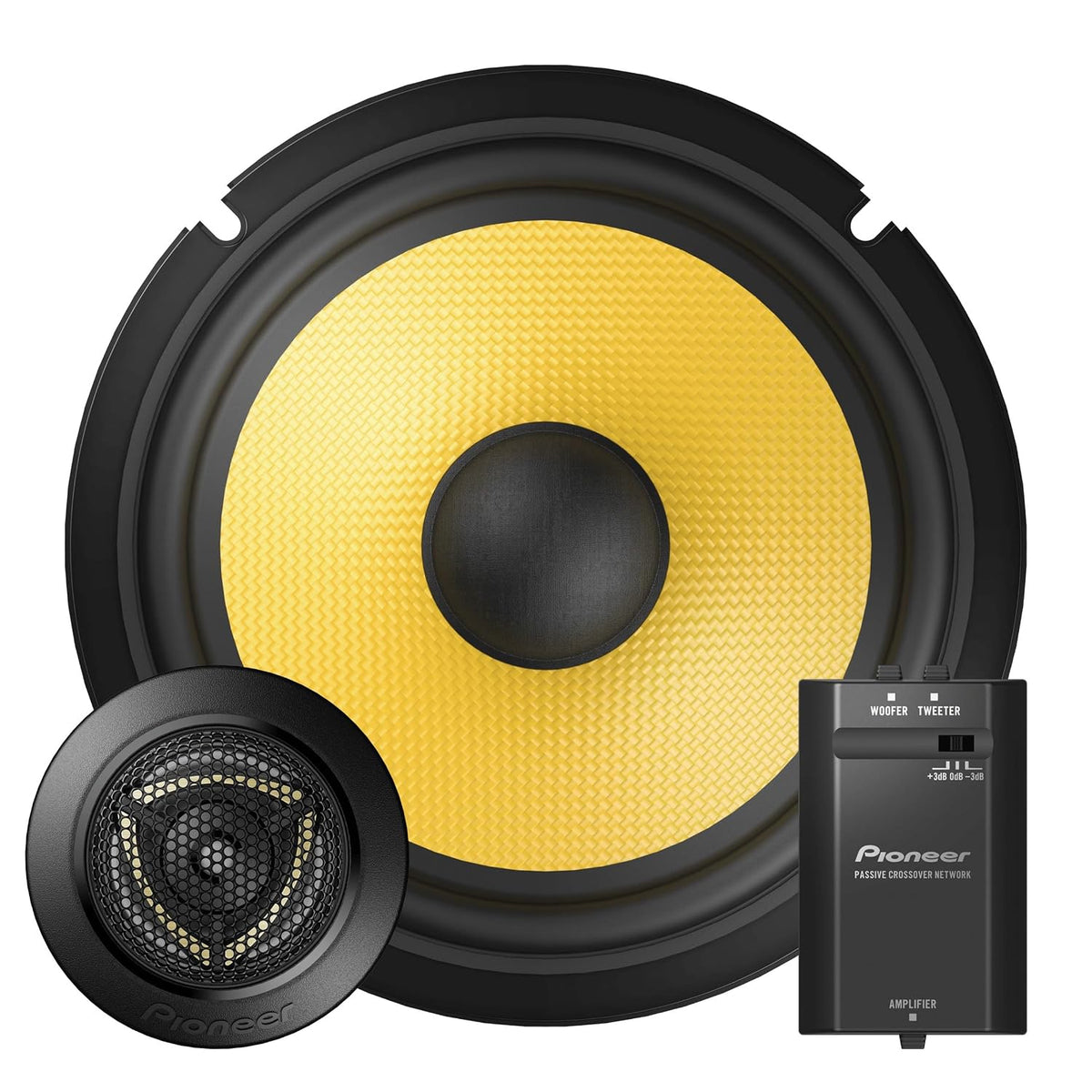

🔊 6.5-Inch 2-Way Component Speaker System

The Pioneer TS-D1740C is a 16cm (6.5-inch) 2-way component speaker system comprising separate woofers and tweeters. This configuration allows the speaker components to reproduce different frequency ranges for a balanced listening experience.

⚡ 100W RMS & 450W Peak Power

With 100W RMS power handling and 450W maximum music power, the TS-D1740C is designed for high-output car-audio applications. Match the speakers with a compatible amplifier for a suitable system configuration.

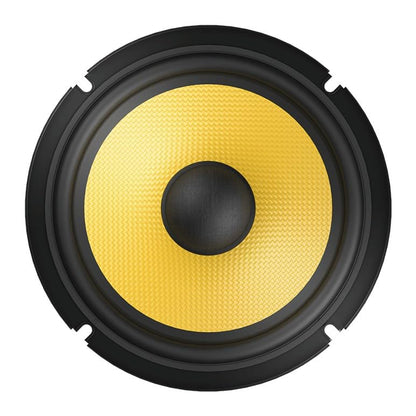

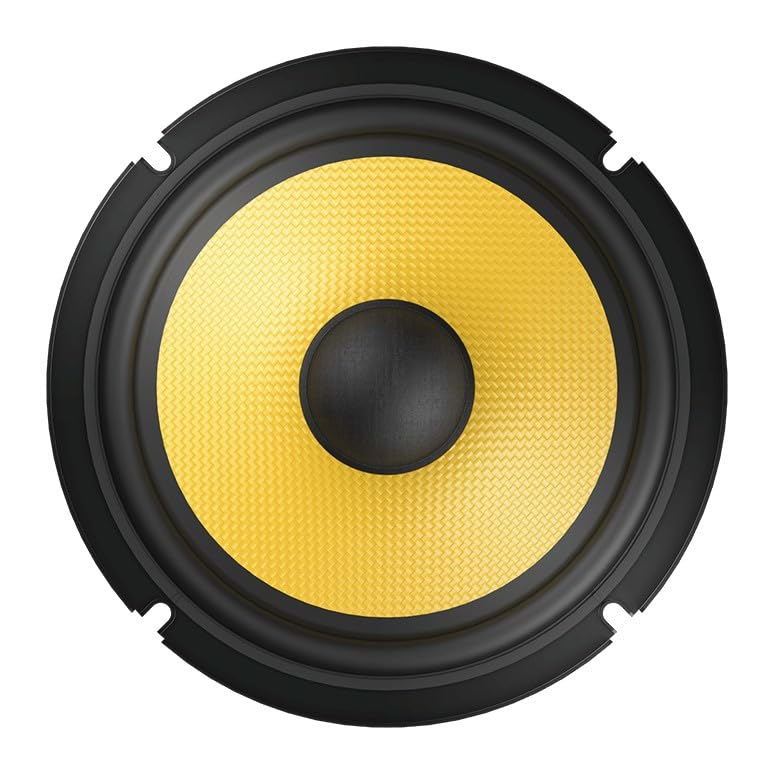

🟡 Yellow Glass-Fibre Woofer Cone

The signature yellow glass-fibre cone, impregnated with resin, is designed to combine low weight with rigidity. Pioneer highlights its ability to suppress unwanted cone vibration and support punchy bass reproduction.

🎵 Powerful Bass & Clear Vocals

The speaker system is engineered to provide strong bass impact while maintaining clear vocals and bright high frequencies. Its specified frequency response extends from 29Hz to 33kHz.

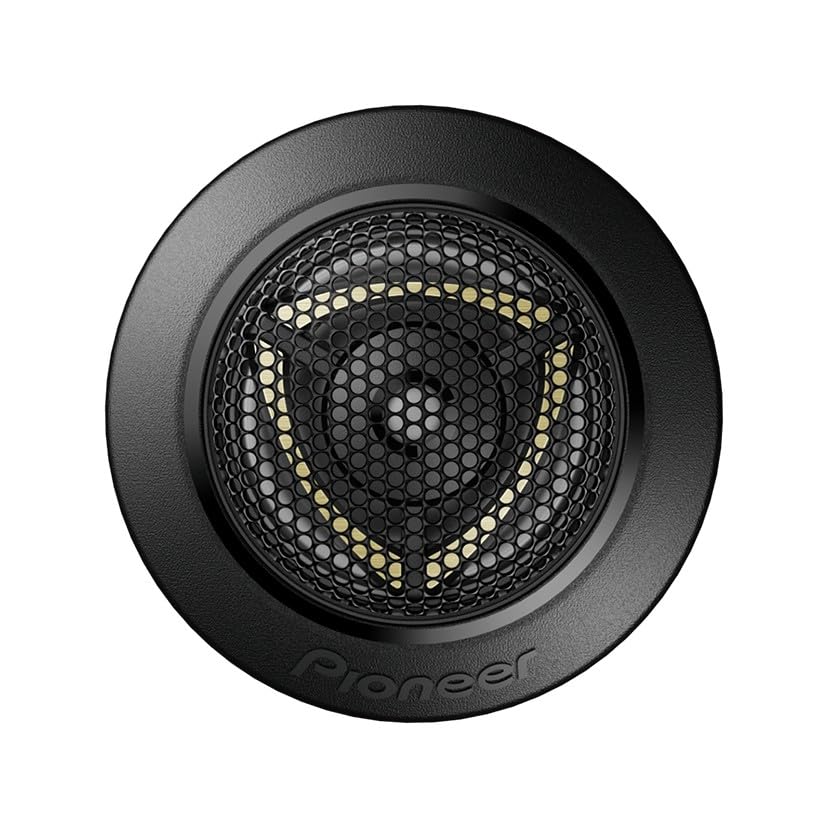

✨ Dedicated Tweeters with Neodymium Magnets

The TS-D1740C uses tweeters with polyimide diaphragms and neodymium magnets. The design supports high-frequency reproduction, helping bring detail and clarity to vocals and instruments.

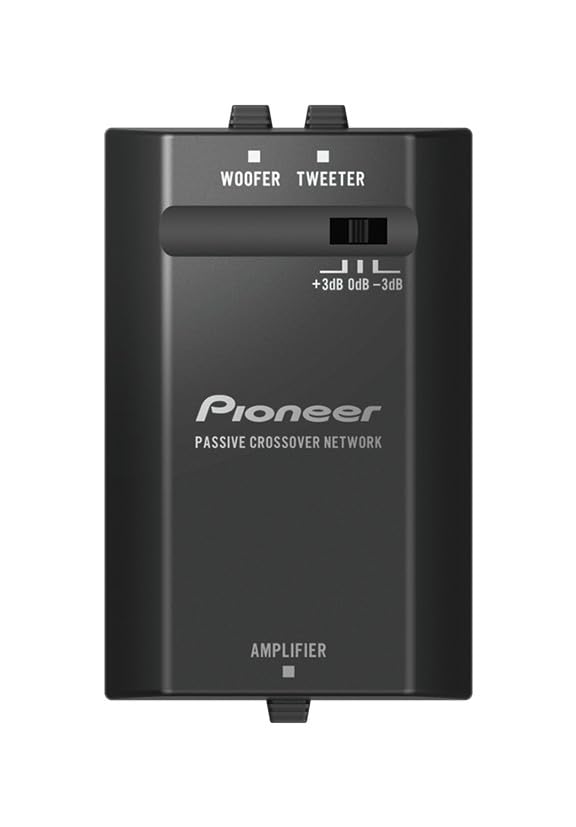

🎚️ External Crossover with 3-Level Adjustment

The included crossover network separates the audio frequencies for the woofer and tweeter. Its three-level tweeter adjustment (-3dB / 0dB / +3dB) allows the high-frequency output to be adjusted to suit the vehicle's acoustics and listener preference.

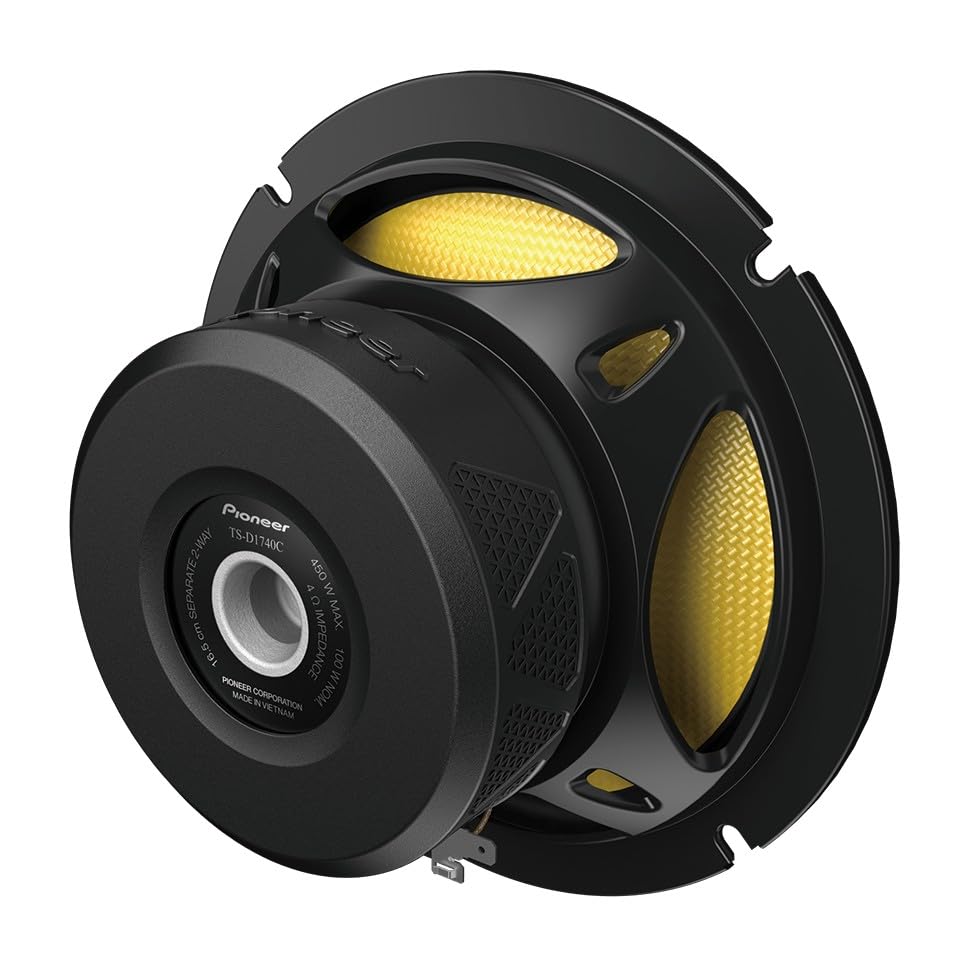

🧲 Robust Magnet & Rubber Edge

The woofer uses a 330g ferrite magnet and a rubber edge designed for strength and elasticity. Pioneer identifies these design elements as part of the speaker's high-power performance and low-frequency reproduction.

⭐ Key Features

• Pioneer D-Series component speaker system

• Model: TS-D1740C

• 6.5-inch / 16cm 2-way component speakers

• 100W RMS power handling

• 450W maximum music power

• Yellow resin-impregnated glass-fibre woofer cone

• Polyimide tweeter diaphragm

• Neodymium tweeter magnet

• 330g ferrite woofer magnet

• External crossover network

• Three-level tweeter adjustment: -3dB / 0dB / +3dB

• Frequency response: 29Hz–33kHz

• Sensitivity: 90dB

• Impedance: 4Ω

⭐ Why Choose Pioneer TS-D1740C?

The Pioneer TS-D1740C is a strong option for drivers who want to upgrade from factory speakers to a dedicated component system. Its yellow glass-fibre woofer, separate tweeters and adjustable external crossover are designed to deliver a combination of bass impact, vocal clarity and high-frequency detail.

With 100W RMS power handling, 450W maximum music power and 4Ω impedance, it can be integrated into a compatible car-audio setup with suitable amplification and installation.

📦 Package Includes

The component system includes the following speaker components and mounting accessories as specified in Pioneer documentation:

• Woofer pair

• Tweeter pair

• External crossover network

• Tweeter mounting accessories

• Woofer mounting cover

• Connecting wires and installation accessories as supplied

Please verify the exact contents of the retail package before installation.

🔧 Installation & Compatibility Notes

• Confirm the vehicle's speaker opening and mounting depth before purchase.

• Woofer mounting depth: 69mm with magnet cover.

• Woofer cut-out diameter: 144mm.

• The system has a 4Ω impedance.

• The external crossover should be installed and connected according to the supplied instructions.

• Tweeter output can be adjusted to -3dB, 0dB or +3dB.

• Vehicle-specific mounting adapters may be required.

• Professional installation is recommended for the best fitment and sound tuning.



📋 Technical Specifications

Specifications are based on Pioneer product information and technical documentation.

❓ Frequently Asked Questions

What is the RMS power of the Pioneer TS-D1740C?

The TS-D1740C is rated at 100W RMS.

What is its maximum power rating?

The maximum music power rating is 450W.

Is the Pioneer TS-D1740C a component speaker system?

Yes. It is a 2-way component system with separate woofers, tweeters and an external crossover network.

What is the impedance?

The speaker system has a 4Ω impedance.

What is the frequency response?

Its specified frequency response is 29Hz to 33kHz.

Does it include a crossover?

Yes. The TS-D1740C includes an external crossover network with three-level tweeter adjustment.

Can the tweeter output be adjusted?

Yes. The crossover provides -3dB, 0dB and +3dB adjustment options.

What is the woofer mounting depth?

The specified mounting depth is 69mm with the magnet cover, and the cut-out diameter is 144mm.

Will these speakers fit every car?

Not necessarily. Fitment depends on the vehicle's speaker opening, available depth and mounting arrangement. Check the dimensions and any required adapters before ordering.
